Labvector

Precision dispensing peristaltic pumps

Price 3052€

Features

  • Servo motor drive, high precision, low pulsation dispensing peristaltic pump.
  • The low pulsation pump head is special for high-precision filling. Through the phase difference between the two sets of rollers, make the fluid peaks and valleys complementary, then reduce the pulsation of the fluid.
  • Adaptive pressure tubing space extends the tubing lifetime effectively.
  • Achieving high precision dispensing of micro flow rate.
  • New flow rate mode, can be used for continuous transferring.

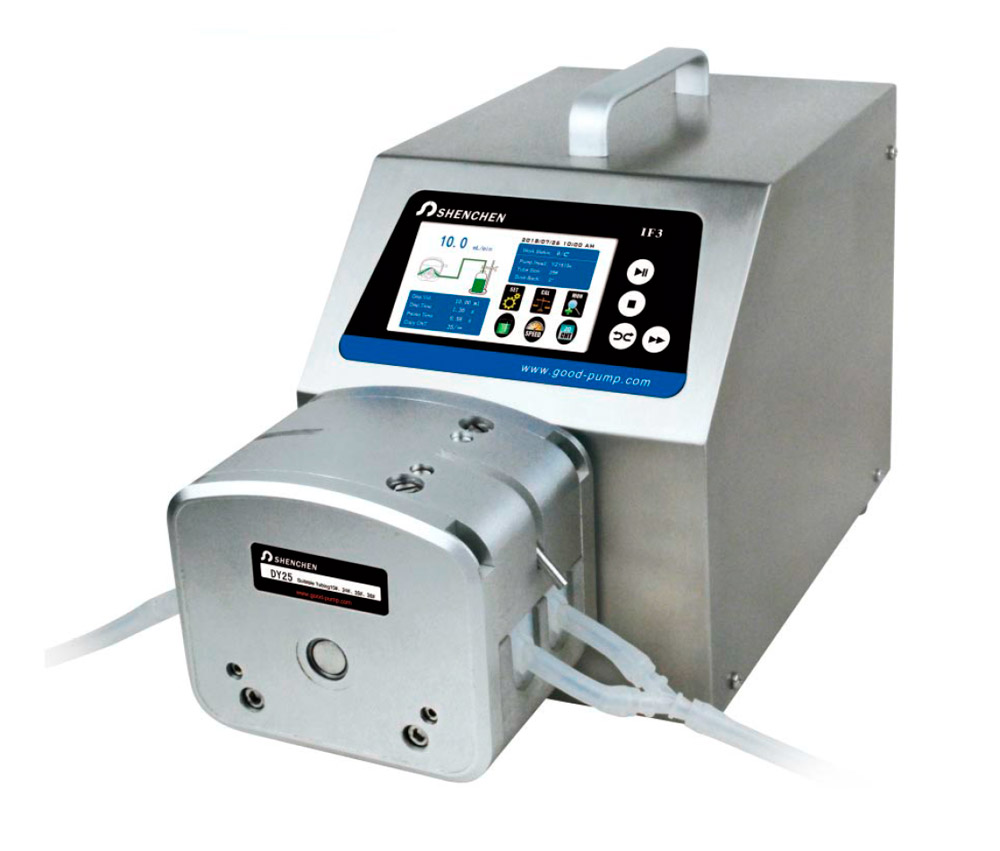

Precision dispensing peristaltic pumps

Product Composition and Flow Rate Range

Drive IF3
Motor Type Closed-loop stepper motor
Pump Head DY15 DY25
Tubing 13”, 14”, 19”, 16”, 25”, 17”, 18” 15”, 24”, 35”, 36”,
Speed Range(rpm) 0.1-350
Flow Rate(mL/min) 0.01~3337 0.42~4340

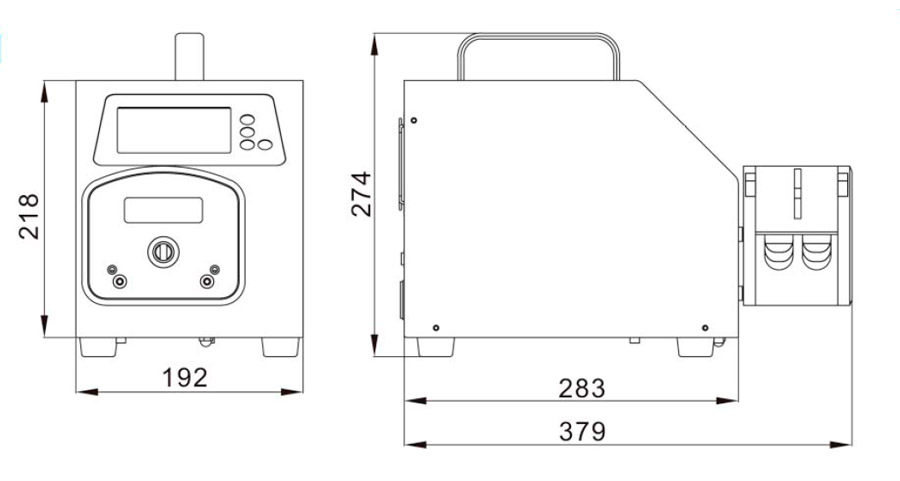

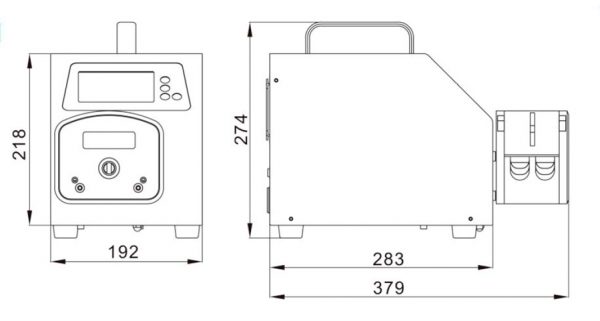

Drive dimension
