Industrial dispensing peristaltic pumps

Features

Suitable for significant flow rate, high efficiency, and high precision filling.
Closed-loop stepper motor drive, accurate control, strong driving force.
304 stainless steel driver housing can support the filling line.
Two working modes: Volume dispensing and speed dispensing (unique for viscous liquid filling).

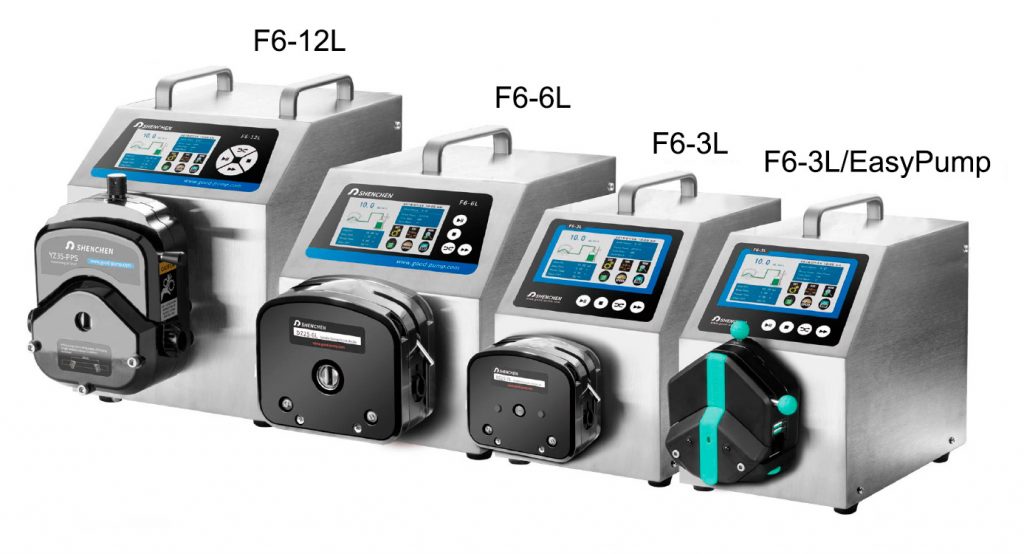

F6-3L/EasyPump 1570€
F6-3L/DZ25-3L 1745-1777€
F6-6L/DZ25-6L 1775-1901€
F6-12L/Yz35 2481-3508€

Flow rate range	F6-3L: 0.0053~3600 mL/min F6-6L: 0.3~6000 mL/min F6-12L: 0.00069~12 L/min
Speed range	0.1-600rpm
Speed resolution	0.01rpm
Dispensing volume range	0.1-9999.99mL
Dispensing volume resolution	0.01mL
Dispensing mode	0.1-9999.99s
Pause time	0.1-9999.99s
Time resolution	0.01s
Copy numbers	1-9999 times, setting ‘0’ means unlimited
Back suction angle	0-360°
Outlet pressure	0.3 Mpa
Dispensing accuracy	< ±0.5%
Motor type	Closed-loop stepper motor
Display	Industrial grade 4.3” color LCD display
Control method	Touch screen and Mechanical keypad
Keypad lifetime	300,000 times
Start/stop, direction signal	Passive switch signal, such as foot pedal switch; Active switch signal: 5-24V universal
Output interface	Output motor working status (Open-Collector output)
Communication interface	RS232, RS485 support Modbus protocol (RTU mode)
Power supply	AC 220V±10% 50Hz/60Hz (Standard) AC 100V±10% 50Hz/60Hz (Optional)
Drive dimension (LxWxH)	F6-3L: 223x152x231 mm F6-6L: 283x192x274 mm F6-12L: 302x222x331 mm
Drive weight	F6-3L: 5.02kg F6-6L: 7.85kg F6-12L: 13.14kg
Power consumption	F6-3L: < 80W F6-6L: < 180W F6-12L: < 300W
Condition temperature	0-40 °C
Relative humidity	< 80%
IP rate	IP31
