Ultra-low humidity dry storage cabinets
The unique global patent and the most demanded product among the electronic factories.

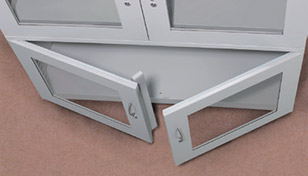

EDRY’s patented movable airtight column
 |
 |
 |
 |

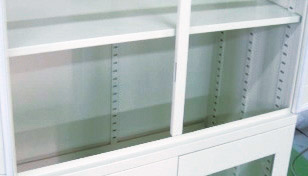

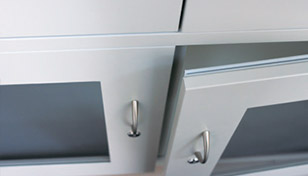

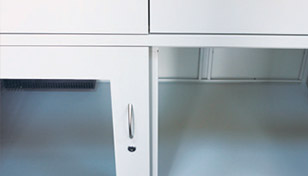

| EDRY’s patented airtight activity column allows items with a larger width can to be easily stored. | Usually the double-door moisture-proof cabinet will have a center column because of some airtight- ness considerations, but this design is not good for storing large items. | The strengthened steel board has a durable and solid structure. | You can open either the left or the right door panel. |
Super fast recovery time within 5mins. EDRY’s ultra- low dry cabinet (10% RH or below) is completely manufactured according to the standards of IPC/JEDEC J-STD-033 for managing the IC integrated circuit.
New patent: it can dehumidify without using nitrogen gas, compressor, and high- temperature baking
Color option: Gray & Black
The model has a fast humidity back-down option for opening the door 30 seconds, 5 minutes, 15 minutes, or 30 minutes.
Optional accessories
- The antistatic paint 106～109Ω (Surface resistance value)
- The antistatic glass
- The antistatic wheels suite x4 Electrostatic ground wire
Extreme Speed Desiccating Performance
Industrial desiccating and moisture prevention must be fast and stable. EDRY leads the world to launch the extreme speed desiccating ultra low humidity main desiccating unit to lower the humidity level to less than 10% within 5 minutes and maintain stable 1%RH lowest humidity level in long period of time. One hour after power up, even with power interruption, it will maintain less than 15%RH humidity level in a period of 24 hours. It can completely replace nitrogen filling and other dry air equipment.
 |
 |

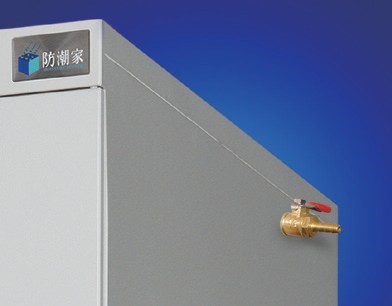

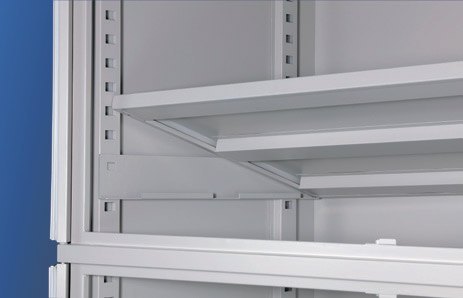

| Filled with nitrogen gas control equipment | Optional accessories for load weight shelves: Resistance, heavy rack shelves (Optional) Special steel shelves, can load more than 200kg |

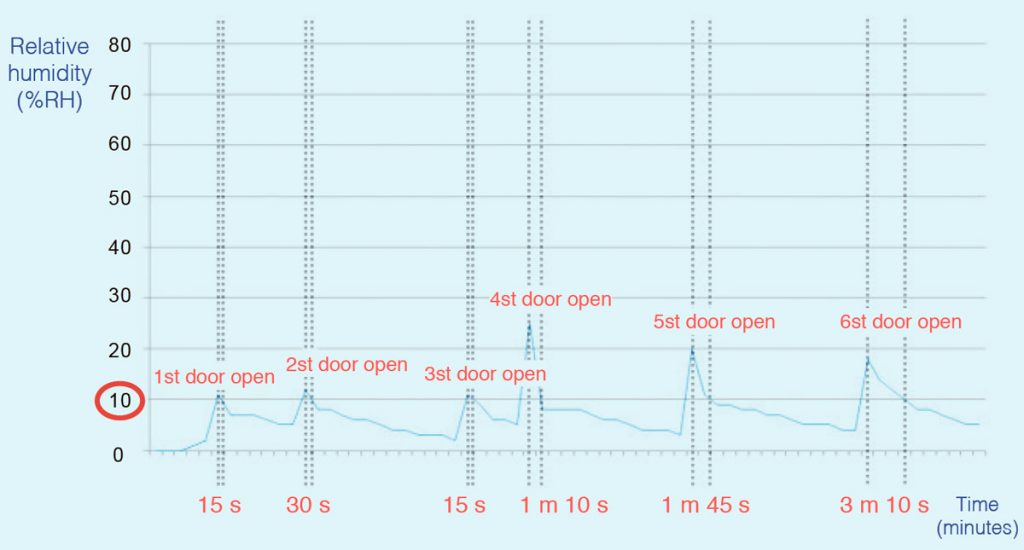

Ultra-low humidity cabinet: Ultra-fast humidity returning test
After opening the door for 30 second and the humidity can drop back to 10%RH within 5 minutes.
Test model SL-1336CA
The environment has a humidity of 55%RH, a temperature between 25 to 37 ℃, and the test is to open the door for 30 seconds to test the humidity return speed. Depending on external temperature changes, test results may vary.
| Item Recovery time | Return to 10%RH or below in 5 minutes | Return to 10%RH or below in 15 minutes | Return to 10%RH or below in 30 minutes |
| Model Number | SL series | ML series | TL series |
| Durability of The Dehumidification Core (Under the Condition That the Door Is closed.) | Duration for maintaining the RH: The result can last for more than 70 hrs. |
Duration for maintaining the RH: The result can last for more than 46 hrs. |
Duration for maintaining the RH: The result can last for more than 26 hrs. |
| Frequency of Door Opening/ Closing | Once every 20 to 30 minutes (Frequent door opening, such as more than 5 times in a day) |
Once every 40 to 90 minutes (Frequent door opening, such as more than 3 times in a day) |
Once every 90 to 180 hrs (The door is opened no more than twice a day) |
| Lowest Humidity Level (RH) | The moisture level can be reduced to 1%RH or lower, and the level can be maintained for a long time. | ||
| Scope of Application | 1. Moisture-proof management for a MSD element assembly site with a high door opening/ closing frequency
2. No high temperature baking; high-moisture level items’ moisture-proof management |
1. Moisture-proof management for a general MSD element assembly site | 1. Moisture-proof management for a MSD element assembly site with a low door opening/ closing frequency
2. Long-term low-moisture MSD elements moisture-proof storage |
Specifications
| Model Number | Specification | Adjustable shelves |

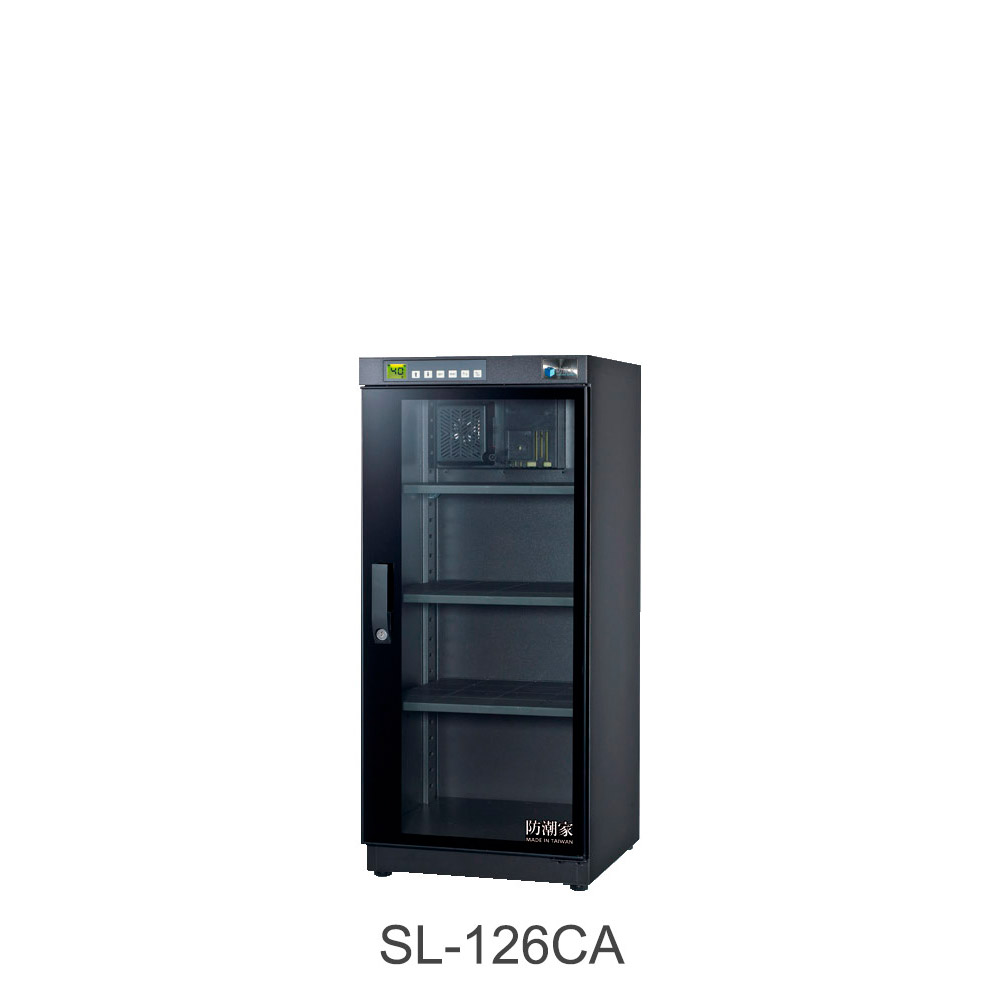

| SL-126CA | Outside: H890xW400xD410 mm Inside: H815xW395xD400 mm Volume: 128L Activities wheels suite |
X3 |

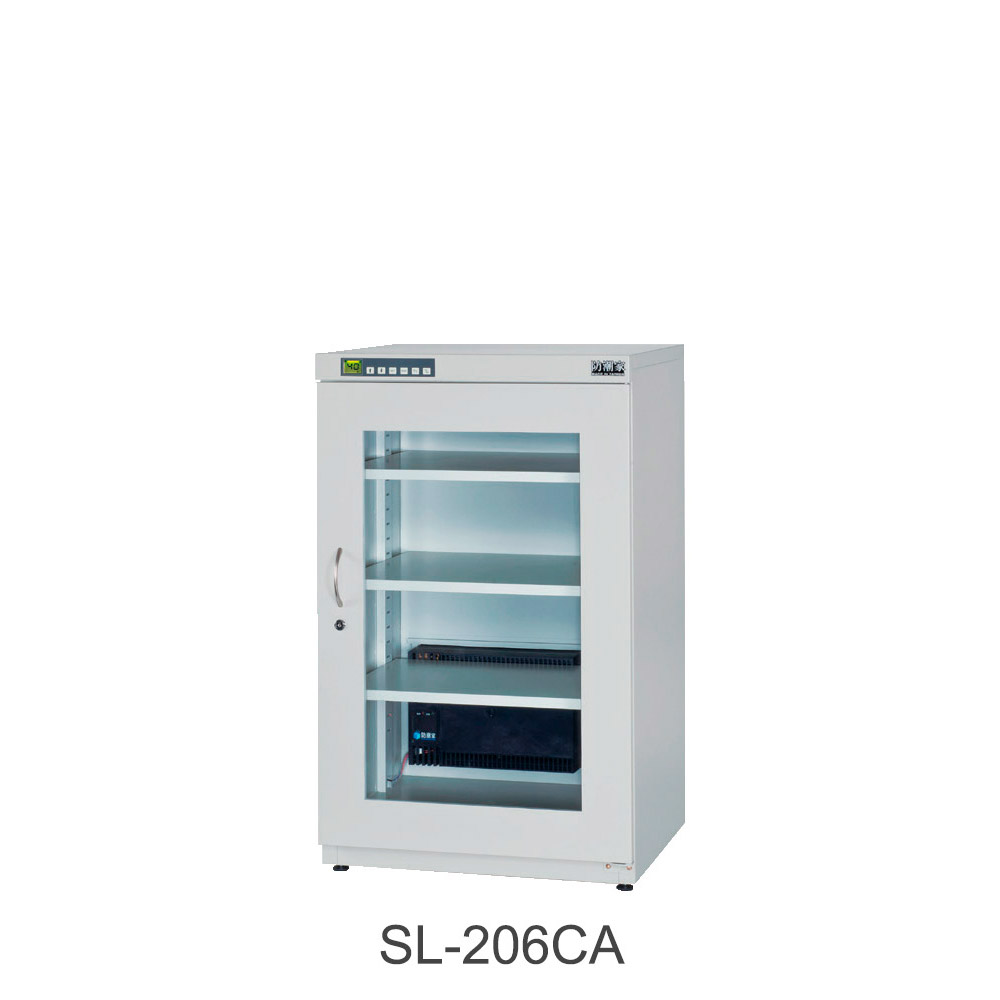

| SL-206CA | Outside: H970xW590xD500 mm Inside: H890xW580xD470 mm Volume: 243L Activities wheels suite |
X3 |

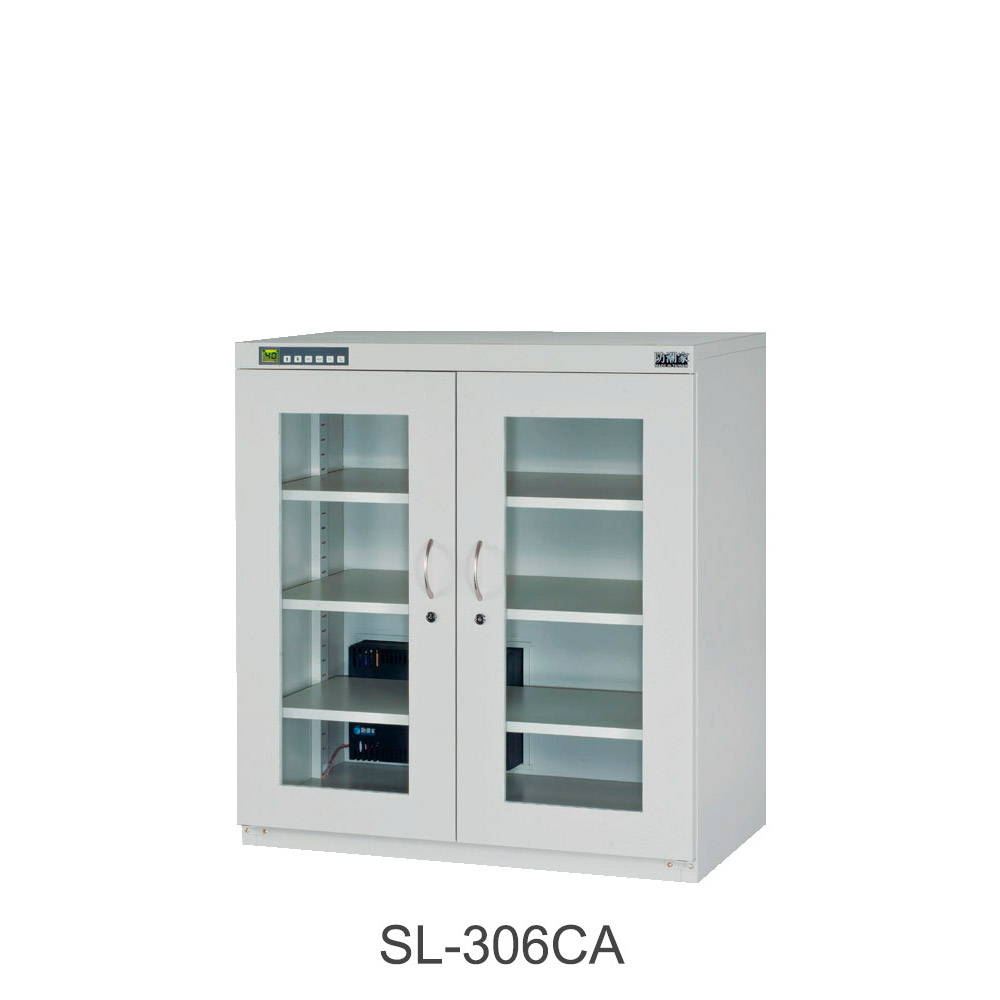

| SL-306CA | Outside: H970xW880xD500 mm Inside: H890xW870xD470 mm Volume: 365L Activities wheels suite |
X3 |

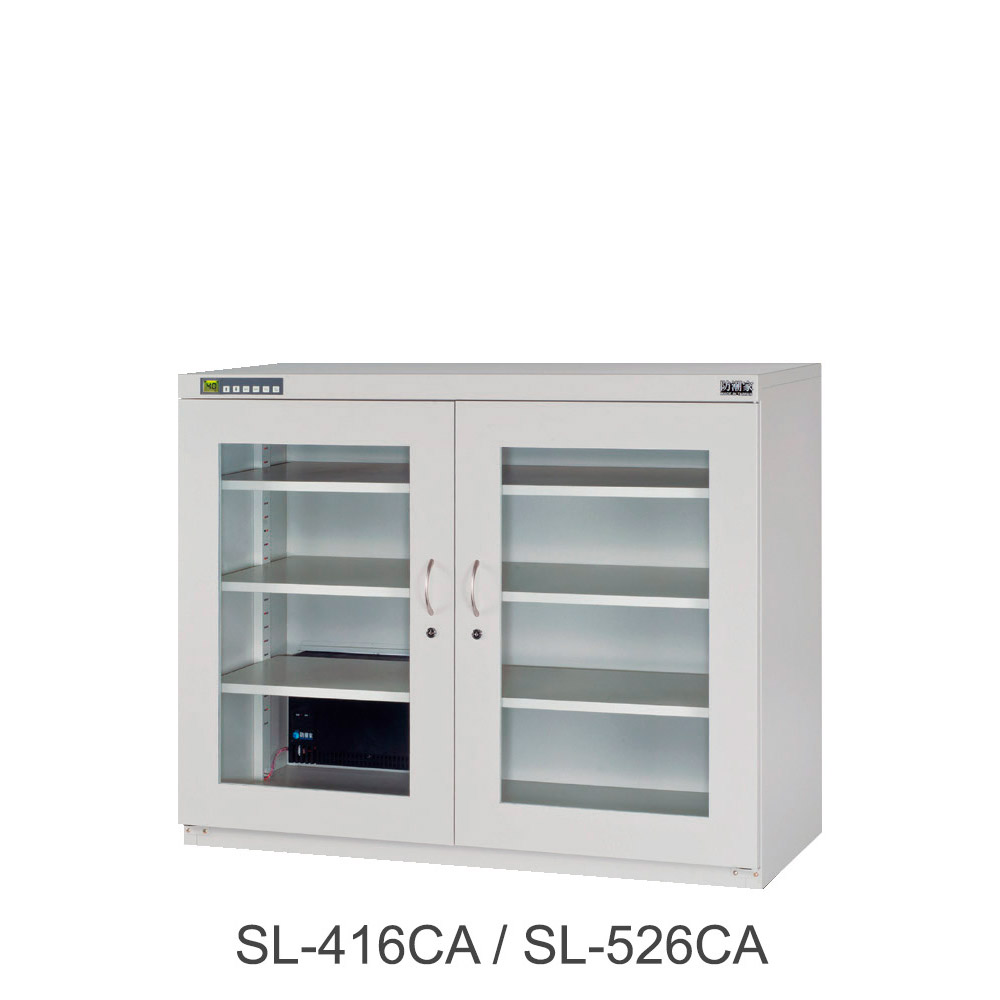

| SL-416CA | Outside: H970xW1180xD500 mm Inside: H890xW1168xD470 mm Volume: 490L |
X3 |

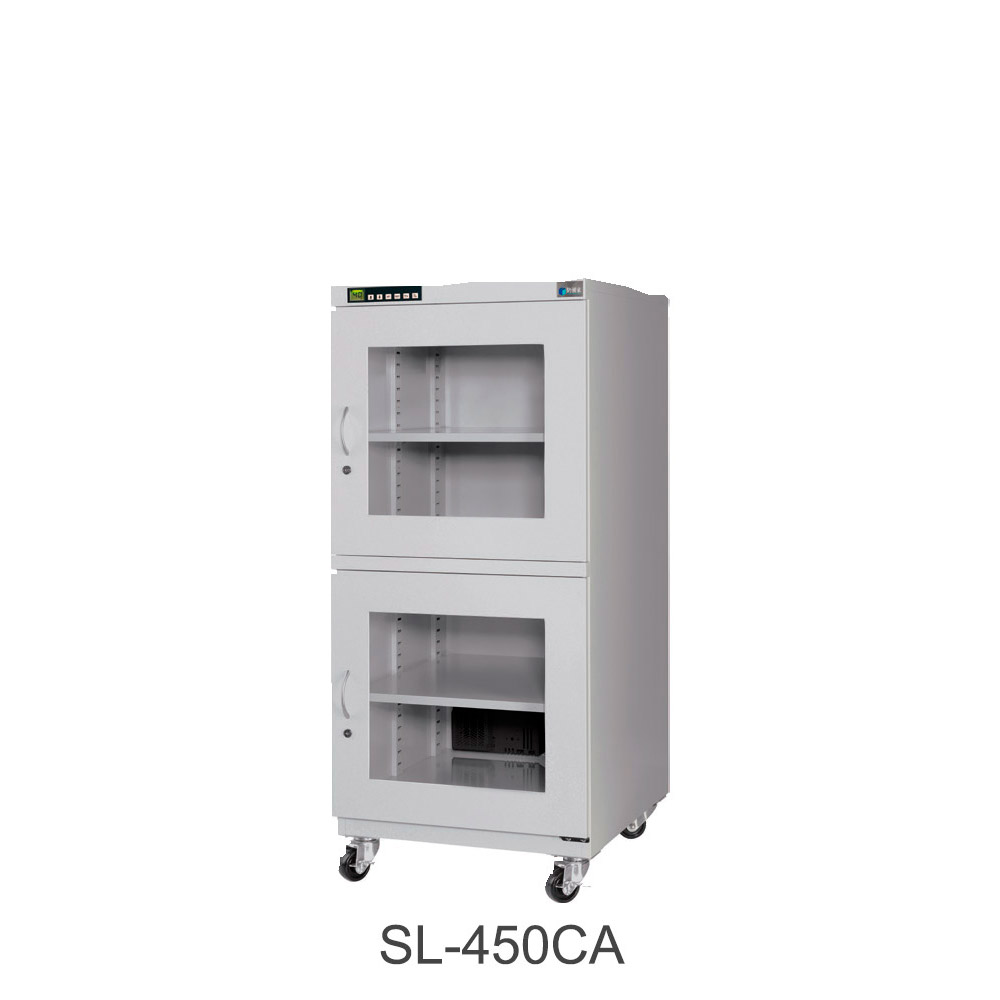

| SL-450CA | Outside: H1350xW600xD660 mm Inside: H1200xW590xD630 mm Volume: 450L Activities wheels suite |
X3 |
| SL-526CA | Outside: H970xW1400xD500 mm Inside: H890xW1398xD470 mm Volume: 585L |
X3 |

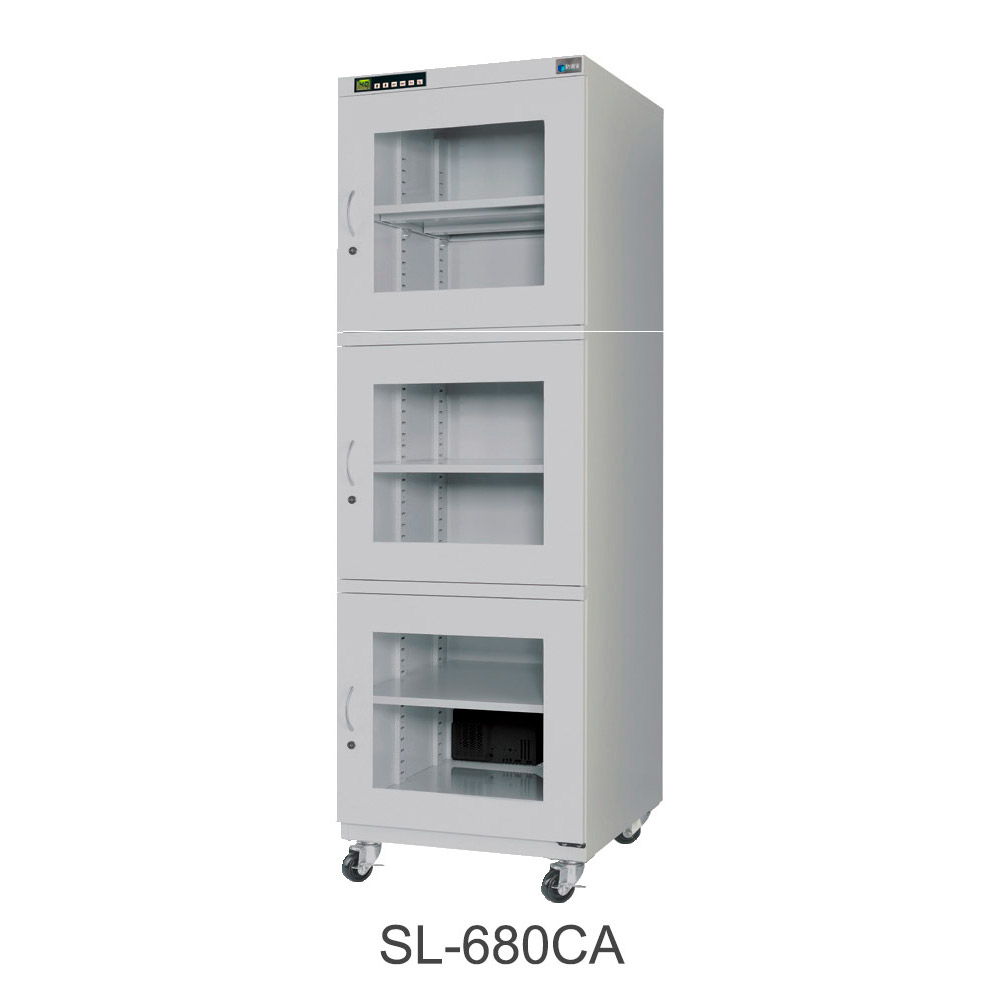

| SL-680CA | Outside: H1950xW600xD660 mm Inside: H1800xW590xD630 mm Volume: 680L Activities wheels suite |
X5 |

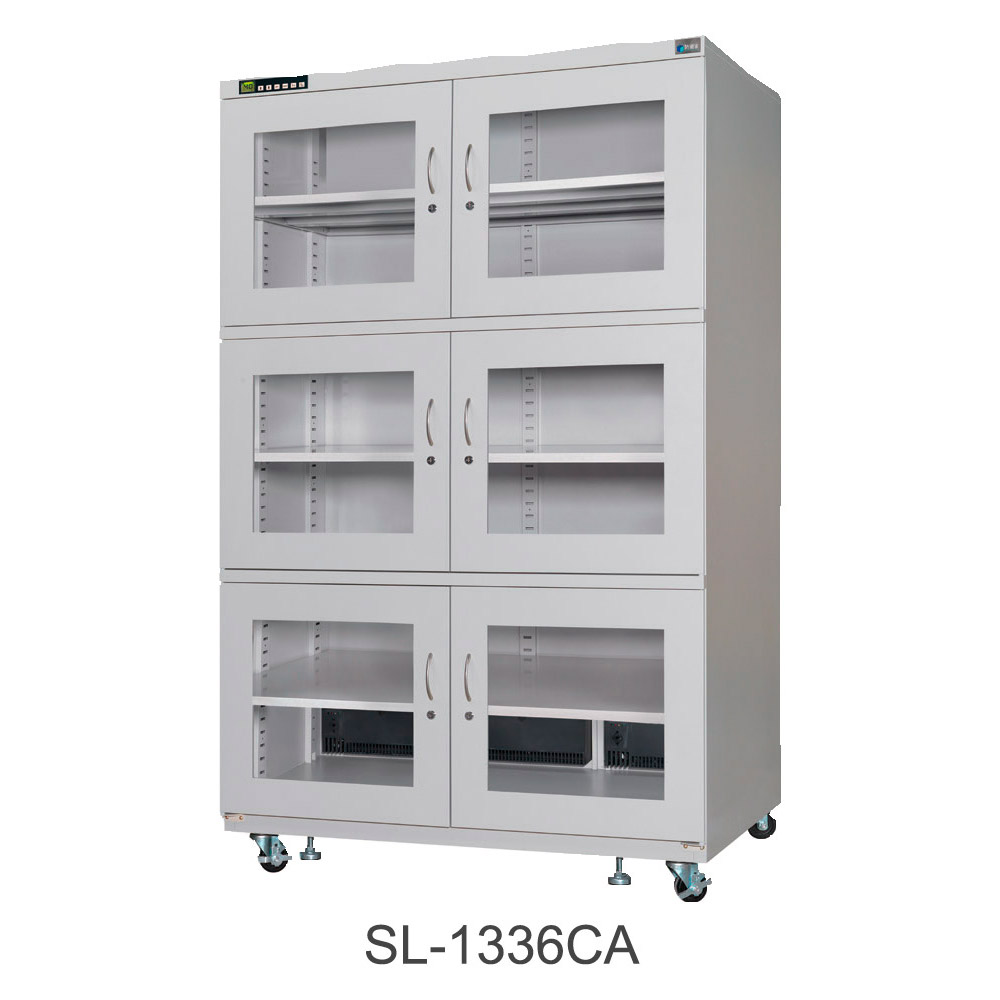

| SL-1336CA | Outside: H1950xW1200xD660 mm Inside: H1800xW1198xD630 mm Volume: 1360L Activities wheels suite |
X5 |
